Our Premium Piping Solutions

High-quality HDPE, PVC, and casing pipes designed for durability and performance across various applications

Explore Our Product Range

Casing Pipes
HDPE Pipes
Sprinkler Pipes
SWR Pipes
Fittings
Blue Threading Casing Pipe
IS 12818

Blue Threading Casing Pipe

Material: HDPE
Length: 3MTR
Sizes: 5" to 7"
Type: CS/CM
View Details
Blue Plain Casing Pipe
IS 12818

Blue Plain Casing Pipe

Material: HDPE
Length: 6MTR
Sizes: 100mm to 200mm
SDR: 35/52
View Details
Dark Blue Plain Casing Pipe
IS 12818

Dark Blue Plain Casing Pipe

Material: HDPE
Length: 6MTR
Sizes: 2" to 5"
Schedule: 40/80
View Details
KAMLESH BLUE THREADING CASING PIPE PER IS 12818 - 3MTR LENGTH
Sr. no. Size SKU Name TYPE Outer Diameter Range (mm) Thickness min (mm) Thickness max (mm)
1 5' (125mm)* KATCASBLCS175 CS 140.0-140.4 mm 5.2 8.0
2 6' (160mm) KATCASBLCS150 CS 185 - 185.4 mm 5.7 8.5
3 7' (175mm) KATCASBLCS175 CS 200 - 200.5 mm 7.0 7.8
4 5' (125mm) KATCASBLCM025 CM 140.0-140.5 mm 8.5 7.3
KAMLESH BLUE PLAIN CASING PIPE – 6MTR LENGTH
Sr. no. Size SKU Name SDR Outer Diameter Range (mm) Thickness min (mm) Thickness max (mm)
1 100mm KATCASBL3510 SDR 52 110.0 - 110.5 mm 2.1 2.4
2 100mm KATCASBL5210 SDR 35 110.0 - 110.5 mm 3.1 3.5
3 400mm KATCASBL3540 SDR 52 140.0 - 140.5 mm 2.7 3.2
4 400mm KATCASBL5240 SDR 35 140.0 - 140.5 mm 4.0 4.5
5 160mm KATCASBL3560 SDR 52 160.0 - 160.5 mm 3.1 3.5
6 160mm KATCASBL5260 SDR 35 160.0 - 160.5 mm 4.5 4.9
7 180mm KATCASBL3580 SDR 52 180.0 - 180.5 mm 3.5 3.9
8 180mm KATCASBL5270 SDR 35 180.0 - 180.5 mm 5.1 5.6
9 200mm KATCASBL3520 SDR 52 200.0 - 200.0 mm 3.8 4.3
10 200mm KATCASBL5220 SDR 35 200.0 - 200.0 mm 5.7 6.3
KAMLESH DARK BLUE PLAIN CASING PIPE – 6MTR LENGTH
Sr. no. Size SKU Name Sch Outer Diameter Range (mm) Thickness min (mm) Thickness max (mm)
1 2' (50mm) KATCASSM4050 Sch 40 80.2-80.5 mm 3.9 4.4
2 3' (60mm) KATCASBL4080 Sch 40 88.7 - 88.1 mm 5.5 6.2
3 4' (100mm) KATCASBL40100 Sch 40 114.1-114.5 mm 8.0 6.7
4 5' (125mm) KATCASBL40755 Sch 40 141.1-141.5 mm 8.6 7.3
5 5' (125mm) KATCASBL Sch 80 141.1-141.5 mm 8.5 10.7
PE 100 Pipes
IS 4984

PE 100 Pipes

Material: HDPE
Sizes: 32mm to 250mm
SDR: 11 to 33
PN: 4 to 12.5
View Details
PE 80 Pipes
IS 4984

PE 80 Pipes

Material: HDPE
Sizes: 32mm to 90mm
SDR: 8 to 26
PN: 6 to 12.5
View Details
KAMLESH HDPE PIPE MARKED PER IS 4984 - PE 100 PIPES
Sr. no. Diameter SKU Name PN SDR Outer Diameter Range (mm) Thickness min (mm) Thickness max (mm)
1 32 mm KAMPG00080032 PN8 SDR 17 32.0 - 32.3 1.8 2.2
32 mm KAMPG0000032 PN10 SDR 13.8 32.0 - 32.3 2.4 2.7
32 mm KAMPG00025032 PN12.5 SDR 11 32.0 - 32.3 2.3 3.3
2 40 mm KAMPG0008040 PN8 SDR 21 40.0 - 40.4 1.8 2.2
40 mm KAMPG0008040 PN8 SDR 17 40.0 - 40.4 2.4 2.7
40 mm KAMPG0000040 PN10 SDR 13.8 40.0 - 40.4 1.9 3.4
40 mm KAMPG0025040 PN12.5 SDR 11 40.0 - 40.4 3.7 4.2
KAMLESH HDPE PIPE MARKED PER IS 4984 - PE 80 PIPES
Sr. no. Diameter SKU Name PN SDR Outer Diameter Range (mm) Thickness min (mm) Thickness max (mm)
1 32 mm CANPCD0000032 PNB SDR 13.8 32.0 - 32.3 2.4 2.7
32 mm CANPCD0000022 PND SDR 11 32.0 - 32.3 2.9 3.3
32 mm CANPCD0050022 PND 2.5 SDR 8 32.0 - 32.3 3.6 4.1
2 40 mm CANPCD0000040 PNB SDR 17 40.0 - 40.4 2.4 2.7
PE 100 Sprinkler Pipes
IS 17425

PE 100 Sprinkler Pipes

Material: HDPE
Sizes: 63mm, 75mm
Class: 1 & 2
Pressure: 2.5-3.2 kg/cm²
View Details

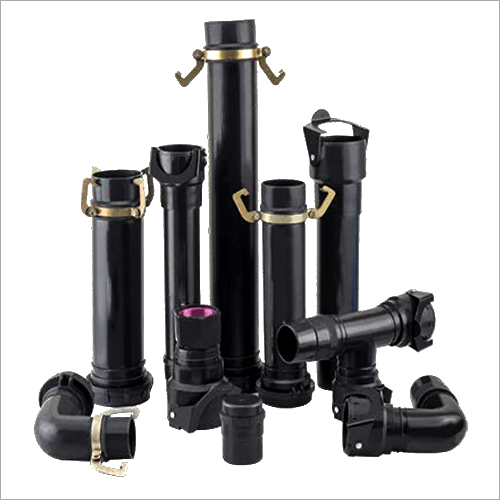

Sprinkler Fittings
IS 17425

Sprinkler Fittings

Material: HDPE
Types: Tees, End Caps, Bends
Sizes: 63mm, 75mm
Variants: Round, C Clamp
View Details
KAMLESH HDPE SPRINKLER PIPE MARKED PER IS 17425 - PE 100 SPRINKLER PIPES
Sr. no. Diameter SKU Name Class Pressure (kg/cm²) Outer Diameter Range (mm) Thickness min (mm) Thickness max (mm) Type
1 63 mm KAMSPROC002063 2 3.2 63.0 - 63.6 2 2.4 ISI w/o Clamp
63 mm KAMSPROC002063 2 3.2 63.0 - 63.6 2 2.4 ISI
63 mm KAMSPROC002063 2 3.2 63.0 - 63.6 2 2.4 Eco
63 mm KAMSPROC002063 2 3.2 63.0 - 63.6 2 2.4 Very-Eco
2 75 mm KAMSPROC000075 1 2.5 75.0 - 75.7 2 2.4 ISI w/o Clamp
KAMLESH HDPE SPRINKLER FITTINGS
Sr. no. Description Size SKU
1 Tee - Round 63 mm KAMSPRTEGS
2 Tee - C Clamp 63 mm KAMSPRTECS
3 Tee - Round 75 mm KAMSPRTEG75
4 Tee - C Clamp 75 mm KAMSPRTEC75
5 Footbotten assembly Round 63 mm KAMSPRFBAB63
SWR Type A Pipes
IS 13592

SWR Type A Pipes

Material: PVC
Sizes: 75mm, 110mm
Pressure: 4 kg/cm²
Color: Blue
View Details

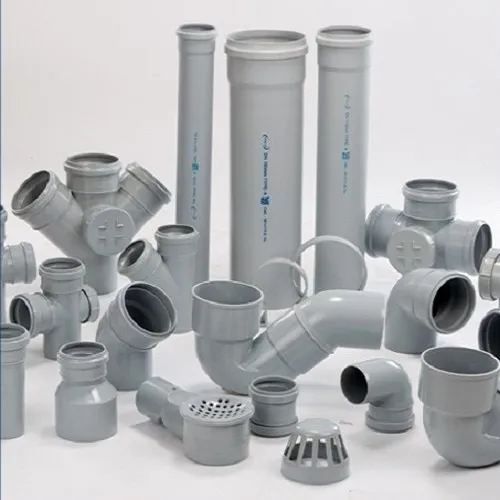

SWR Type B Pipes
IS 13592

SWR Type B Pipes

Material: PVC
Sizes: 75mm, 110mm
Pressure: 2.5-4 kg/cm²
Color: Blue
View Details
KAMLESH SWR PIPE MARKED PER IS 13592
Pressure/Type Dia (mm) SKU Name Outer Diameter Range (mm) Thickness min (mm) Thickness max (mm) MRP
Type B 75 KATSW210075 74.1 - 75.9 3.2 3.8 2,748
Type B 110 KATSW210110 108.6 - 111.4 3.2 3.8 2,112
Type A (4kg/cm²) 75 KATSW214075 74.1 - 75.9 3.8 2.2 2,445
Type A (4kg/cm²) 110 KATSW214110 108.6 - 111.4 2.2 2.7 2,790
2.5 kg/cm² 75 KATSW22575 75.0 - 75.3 3.5 3.8 2,371
2.5 kg/cm² 110 KATSW225110 10.0 - 11.4 3.8 2.0 2,643
HDPE Sprinkler Fittings
IS 17425

HDPE Sprinkler Fittings

Material: HDPE
Types: Footbotten, End Caps, Bends, Tee
Sizes: 63mm, 75mm
Variants: Round, C Clamp
View Details

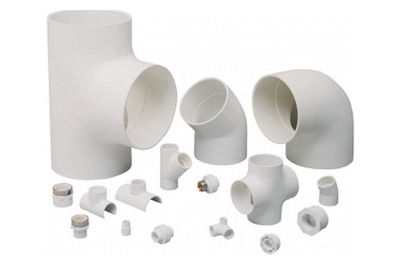

Schedule 40 Fittings
Standard

Schedule 40 Fittings

Material: PVC
Sizes: 20mm to 50mm
Schedule: 40/80
Pressure Rating: High
View Details
KAMLESH HDPE SPRINKLER FITTINGS
Sr. no. Description Size SKU MRP
1 Footbotten assembly Round 63 mm KAMSPRFBAB63 373.00
2 Footbotten assembly C Clamp 63 mm KAMSPRFBAC63 428.00
3 Footbotten assembly Round 75 mm KAMSPRFBAB75 373.00
4 Footbotten assembly C Clamp 75 mm KAMSPRFBAC75 428.00
5 End Cap - round 63 mm KAMSPRENDB63 144.00
SCHEDULE 40 FITTINGS
Schedule Nominal size (mm) Nominal size (inch) SKU Name Outer Diameter Range (mm) Thickness min (mm) Thickness max (mm) MRP per 3mtr
Sch 40 20 (3/4") KATURVCS4020 28.6 - 28.9 2.9 3.4 2,235
Sch 40 25 (1") KATURVCS4025 33.3 - 33.5 3.4 3.9 2,339

Need Help Selecting the Right Pipe?

Our experts are ready to help you choose the perfect piping solution for your specific requirements.

Contact Us
